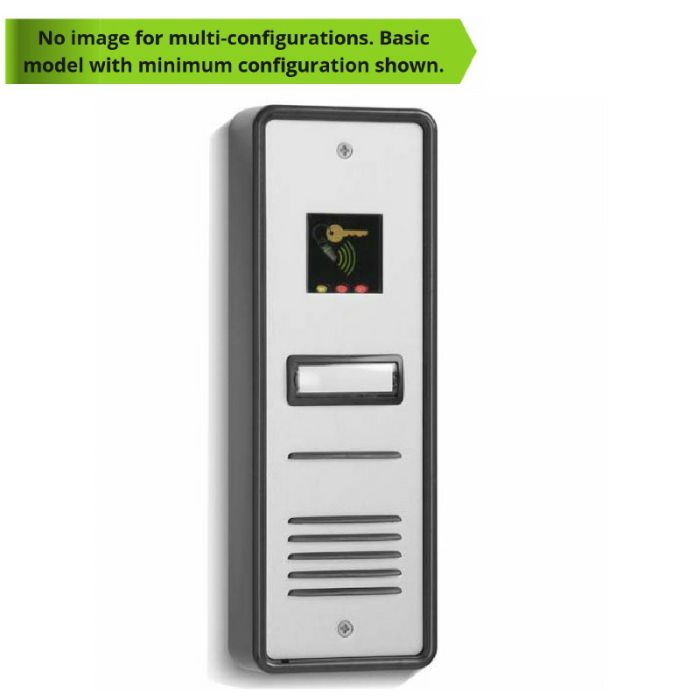

Bell 2 Button Surface Standard Audio Panel with Proximity

BSTL (Bell System) - 2 station aluminium audio door entry intercom panel, surface mounting, with built in proximity access control reader

It is common for a door entry telephone system to be combined with a proximity access system to allow easy access by residents, tenants or staff.

Distributors have sourced products from two manufacturers but now two Great British manufacturers have combined their leading products to offer an outstanding integrated access control system.

The inclusion of an exclusive Paxton compact standalone reader on door entry panel allows authorised personnel free entry to the building by means of a keyfob whilst visitors access can be controlled by the Bell System door entry telephone.

The proximity system is the ideal access control solution in situations where no central programming or reporting is required. Validating and voiding of users is achieved with a unique shadow card system, and all system programming is performed with the easy to use function cards. All packaged systems include a starter pack of keyfobs and additional keyfobs can be purchased as required.

Paxton Compact panel Mount Reader

This compact panel-mount reader is manufactured by Paxton Access for exclusive use in Bell System door entry systems. It is mounted on the rear of the panel by four secure threaded studs and nuts and protected on the front by a Lexan window. The proximity compact reader contains all the electronics inside the reader, from which come three cable pairs connecting to the power, electric release and, optionally, an exit button. The lock output is fail-secure by default with a timed lock output set at 5 seconds. Alternatively, the fail-open card (included in the starter keyfob pack) can be used to change the lock output to operate a fail-safe lock 65.

CSP Standard Front Door Panels (7 buttons maximum)

These panels are similar to the standard audio SPA style panels and are manufactured from 3 mm anodised aluminium with an integral grill protecting the speech unit. The compact proximity reader is protected by a Lexan window.

As standard, the panels are supplied with a low-profile surface mounting box moulded in black. Alternatively, the panels can be supplied with a flush fitting zintec back-box and vandal resistant bolts. The largest available panel has 7 buttons and thereafter the vandal resistant style should be used.
