Comelit Audio/Video Colour Camera Unit for Simplebus 2

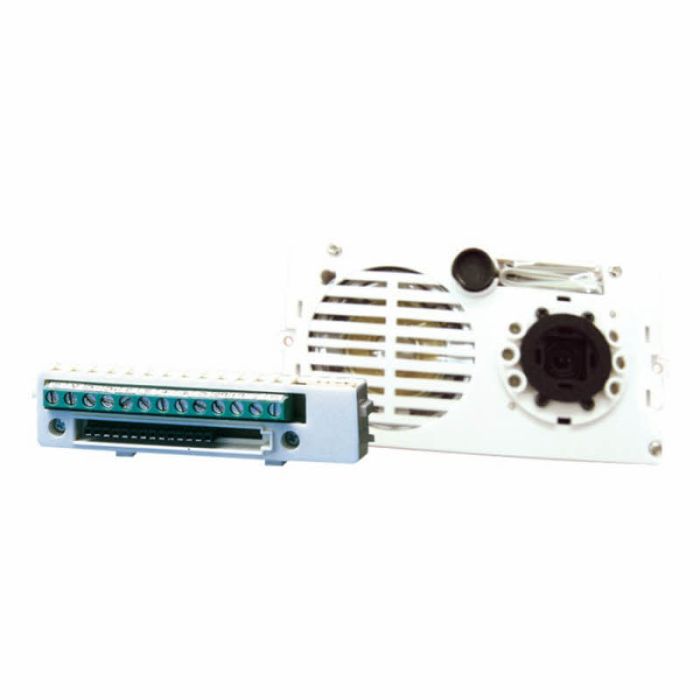

Comelit 4680C Audio/Video Colour Camera Unit for Simplebus 2

This camera module with terminal block is used in conjunction with Comelits iKall entrance panels using two wire cabling.

It is fully equipped with a digital audio management system with echo-cancelling, microprocessor and a DIP switch with eight positions for programming calls to users.

The loudspeaker and electret microphone volume can be adjusted from the front of the module. Furthermore, it has an audio visual indicator function which can be activated via programming.

Features:

• Audio-visual indicators
• Timed lock release input
• Allows call addressing for up to 120,000 users

Technical Specifications:

• Power supply: 33V DC special power supply unit
• Maximum current absorption: 400 Ma
• Relay contacts: C, NC, NO,
• Camera sensor type: 1/4 CCD
• Camera pixels (H x W) 500 x 582

Dimensions:

• 55 x 102 x 38 (hwd mm)
