Comelit SimpleHome 1 Out Module 10A Relay on BUS, Flush Mount or DIN
£119.94
£99.95
SKU
20004602
- This product is available to order. The lead time is normally 2 – 4 working days.
- An accurate despatch date will be confirmed with you once order is received by our sales team (during office hours).
Free Delivery on this product

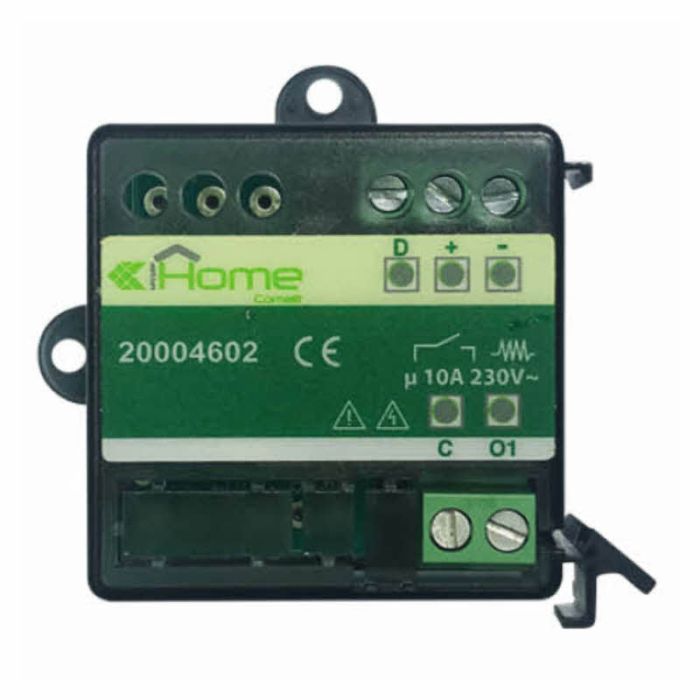

Comelit 20004602 SimpleHome 1 Out Module 10A Relay on BUS, Flush Mount or DIN
Comelit 20004602 SimpleHome 1 Out Module 10A Relay on BUS, Flush Mount or DIN
Interface on SimpleHome bus with one 10A NO/NC configurable relay.
For flush or DIN-rail mounting.
Features:
- Flush-mounted
- DIN rail mounted
- Timed output management
- BUS address programming via dipswitch
- Configurable no/nc outputs
- Automation management
- Loads management
- Climate management
- Lights management
- Scenario management
Technical Specifications:
- Home Automation system
- DIN modules: 1
- No. of Simplehome buses: 1
- Power supply: from SimpleHome BUS
- Max input current: 20mA
- Maximum resistive load of a single output (mA): 10
- Output status LEDs
- Number of outputs: 3
Dimensions:
- 42 x 42 x 18 (hwd mm)
