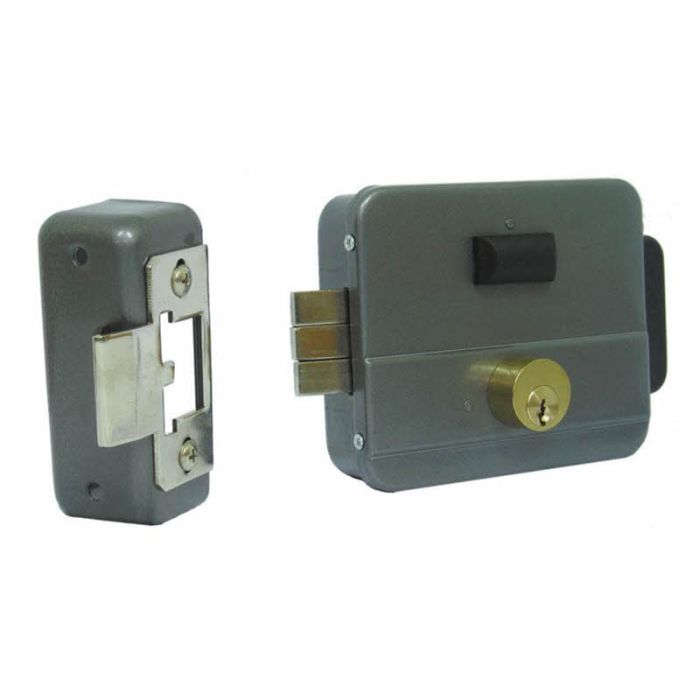

Fermax Electric Rim Lock with Double Key and Pushbutton

Fermax 2879 Electric Rim Lock with Double Key and Pushbutton

Operating type

There are several types of door lock release mechanisms depending on the type of operation needed. N type Normal 12 Vac. (Normal operation and 12 Vac activation). The lock release is unblocked for the time that the 12 Vac voltage is applied.

Reversible (Right DIN or Left DIN)

Lets you open the door from right and left.

Symmetrical

Allows to change hands, maintaining the body symmetry.

DIN Standard

Establishes the direction the door opens and designates the type of lock release installed. Looking at the door from the side with the hinges visible:

• If the hinges are to the left of the observer, it is a left DIN lock release
• If the hinges are on the observerÕs right, it is a right DIN

Series 960

Replacement Electric Rim Lock. It's size and standard attachment point allow insertion into the majority of electric locks. The cylinder is adjustable from 50 to 70 mm.

Technical Specifications:

Consumption:

• 12Vac: 850mA
• 12Vdc: 1,7A
