Fermax CITYMAX Standalone Memokey Module (12VAC/VDC)
£223.67
£186.39
SKU
F-2520
- This product is available to order. The lead time is normally 2 – 4 working days.
- An accurate despatch date will be confirmed with you once order is received by our sales team (during office hours).
Free Delivery on this product

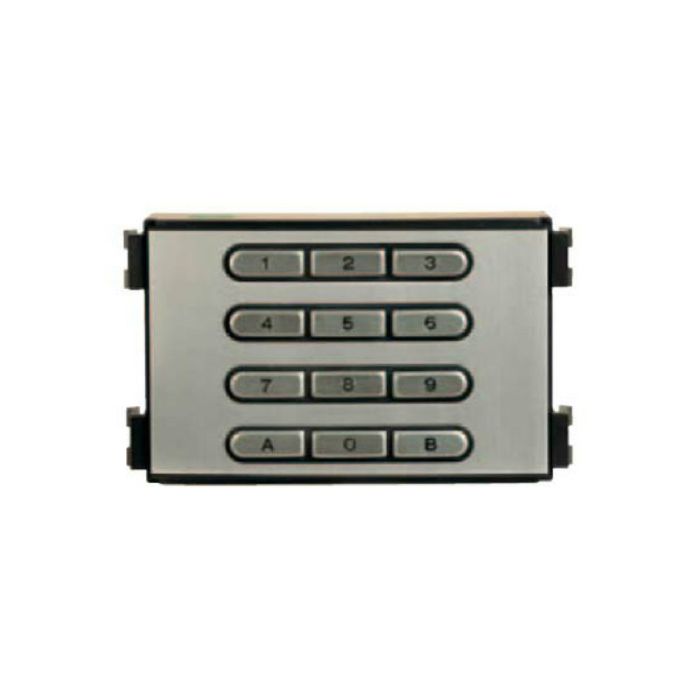

Fermax 2520 Telephone type keypad that lets you open the door when a previously programmed 6 digit code is entered
Fermax 2520 CITYMAX Standalone Memokey Module (12VAC/VDC)
This telephone type keypad from Fermax lets you open a door when a previously programmed six digit code is entered. The module is to be used in panels that have a viewer.
A stand alone access control system for installation where a simple access control is required. Works in addition to a audio/video door entry system and enables access to a building for its residents. For example: offices, small businesses and garages.
Features:
- Up to 100 user codes
- Code length 4 to 6 digits.
- Exit button input
- Free access button (trades) input
Technical Specifications:
- Standalone power supply: 12Vac/Vdc
- Electric lock release activation by Relay2 A (NA,NC). Programmable 1 to 99 sec. or bistable.
- Open Collector auxiliary output (150 mA max) to indicate sabotage attempt or door open/forced
- Confirmation by keypad pulsation tone and acceptance or rejection of the code entered.
- Programming from the keypad by master code.
- Power supply 12 Vac / 12 Vdc
- Consumption: 6 mA (standby), 60 mA (active).
- Protection IPK 536
Attachments
Write Your Own Review
| Brand | Fermax |
|---|---|
| Type | Stand Alone |
| No of codes | 100 user codes |
| Operating Voltage | 12.0 Volt AC |
| Relay Outputs | 1 Relay |
