Videx VX2200 Audio 4 Door Control Cabinet
£286.57
£238.81
SKU
V-2291A/NTC
- This product is available to order. The lead time is normally 1 – 3 working days.
- An accurate despatch date will be confirmed with you once order is received by our sales team (during office hours).
Free Delivery on this product
Videx Audio 4 entrance CPU c/w 5A PSU

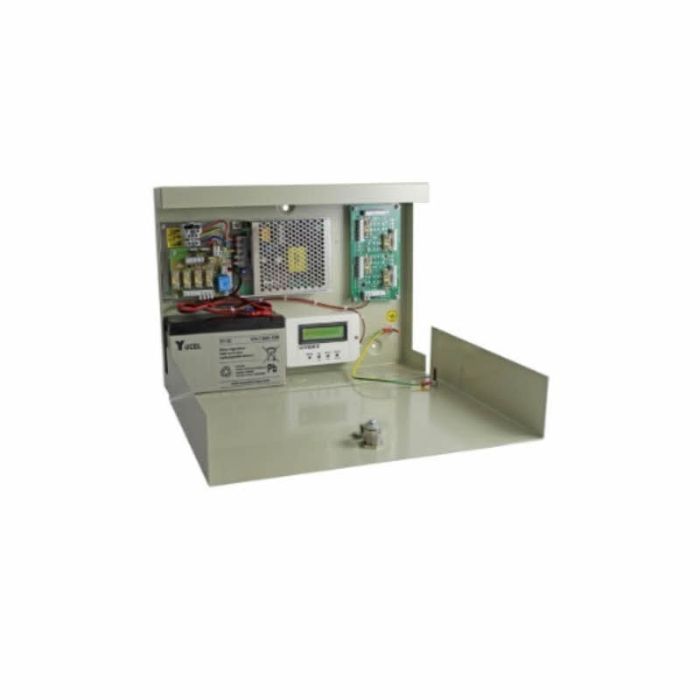

Videx 2291A/NTC VX2200 Audio 4 Door Control Cabinet
Four door audio control cabinet for use on VX2200 audio systems. Used as a central junction point and to switch through common data bus connections.
Please note this cabinet does not include the 701T digital timeclock. Available with timeclock, remove '/NTC' from the part code.
Technical Specifications:
- Series: 2291 Series Audio and Video Control Cabinets
- Cabinet: Lockable CAB2 (pre-wired inc. keys)/li>
- Mains Input: 230Vac (50/60Hz) mains input voltage/li>
- Mounting: Surface mount cabinet/li>
- PSU: 1 x XP UBPSU5.0 (4x +/- and tamper)/li>
- Video PSU: 1 x 893N (-C/+C/ +/ -/+D)/li>
- Switching Card: 1 x VX123-A 4 door audio switching card (4 x 1A door inputs/outputs; 1 x through input/output)/li>
- Working Voltages: 12Vdc power (1x +/- @ 2A; 3x +/- @ 1A) video 20Vdc power (1x +/-, +D/- @ 1A)/li>
- Battery Back-Up: Yes: included on 12Vdc psu (PSU-3R)/li>
Dimensions:
- 265 x 360 x 75 (hwd mm)
